Diethylene Triamine Penta (Methylene Phosphonic Acid) (DTPMPA)

Diethylene Triamine Penta (Methylene Phosphonic Acid), commonly known as DTPMPA, is a high-performance organophosphonic acid recognized for its exceptional chelating and scale-inhibiting properties. Belonging to the nitrogen-containing phosphonate family, it features five phosphonic acid groups, which provide a high density of donor atoms for metal ion complexation. DTPMPA is chemically stable under harsh conditions, demonstrating superior thermal stability compared to other common phosphonates like ATMP or HEDP.

Its primary function is “threshold inhibition,” where it prevents the precipitation of scale-forming salts—such as calcium carbonate, calcium sulfate, and barium sulfate—at sub-stoichiometric concentrations. Furthermore, DTPMPA is an excellent stabilizer for oxidizing agents, particularly hydrogen peroxide, by sequestering transition metal ions that catalyze peroxide decomposition. Due to its resistance to hydrolysis and ability to function across a broad pH range, it is an indispensable component in industrial water treatment, oilfield operations, and textile processing where high temperatures and extreme chemical environments are prevalent.

Attributes

Key Features and Benefits

High-Efficiency Scale Inhibition: Exceptional at preventing sulfate and carbonate scales, even in high-salinity and high-alkalinity waters.
Superior Thermal Stability: Maintains chemical integrity and performance at temperatures exceeding 120°C, making it ideal for boilers and geothermal applications.
Powerful Sequestration: Functions as a multi-dentate ligand, forming highly stable water-soluble complexes with polyvalent metal ions like Ca²⁺, Mg²⁺, Fe³⁺, and Cu²⁺.
Peroxide Stabilization: Effectively inhibits the catalytic decomposition of hydrogen peroxide by chelating trace metals (manganese, iron) during bleaching.
Broad pH Tolerance: Exhibits high solubility and remains active in both strongly acidic and highly alkaline aqueous environments.
Synergistic Corrosion Inhibition: When combined with zinc or molybdates, it provides enhanced cathodic corrosion protection for carbon steel.

Specifications

Technical Highlights

Chemical Identity: CAS No. 15827-60-8; Molecular Formula: C₉H₂₈N₃O₁₅P₅.
Molecular Weight: Approximately 573.20 g/mol.
Physical State: Typically supplied as a clear, dark amber, or brown aqueous solution.
Active Content: Commercially available in concentrations of 48%–52% (as active acid).
Acidity (pH): The 1% aqueous solution generally maintains a pH of < 2.0, reflecting its strong phosphonic acid nature.
Density: Specific gravity ranges from 1.35 to 1.45 at 20°C.
Chloride Control: Low-chloride grades are available to minimize the risk of pitting or stress corrosion in stainless steel systems.
Solubility: Completely miscible in water and highly compatible with many surfactants and polymers.

Download Technical Data Sheet (TDS)

Practical industry uses

Applications

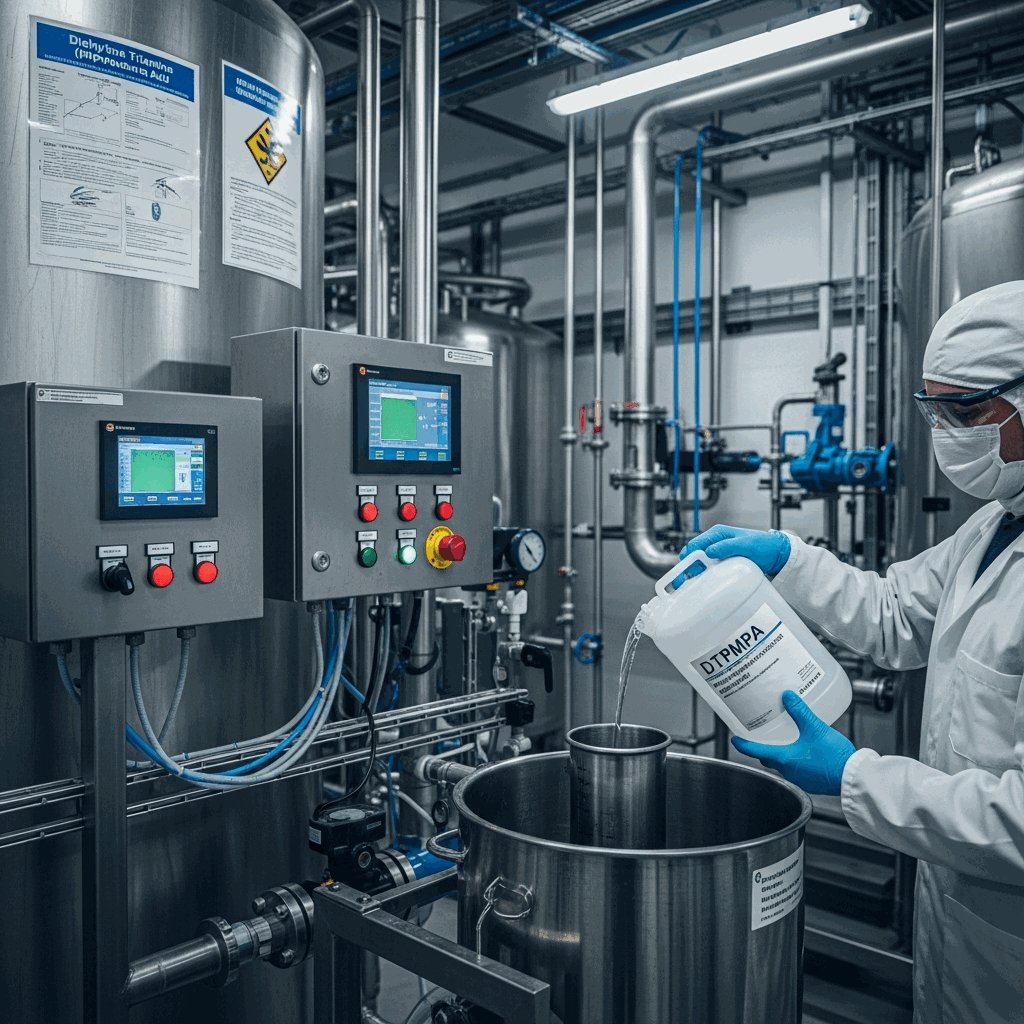

Industrial Water Treatment: Used in cooling towers, heat exchangers, and evaporators to prevent scale buildup and minimize equipment downtime.
Oilfield Operations: Essential for squeeze treatments in oil production wells to prevent barium and strontium sulfate scaling in the formation and tubing.
Textile Industry: Employed in peroxide bleaching baths as a stabilizer and in dyeing processes to prevent metal-induced shade changes.
Pulp and Paper: Acts as a chelating agent in mechanical pulp bleaching (DTPA alternative) to improve brightness and prevent scale in paper machines.
Detergents & Cleaners: Added to industrial laundry and automatic dishwashing detergents to enhance soil removal and prevent spotting caused by hard water.
Electroplating: Utilized as a metal ion carrier and complexing agent in cyanide-free plating baths.
